Baader Planetarium – BP2451566
Baader Piastra PAN 3/EQ clamp/230 mm. Sostiene entrambe le barre di tipo Losmandy & Vx GP, in oltre è dotata delle forature per essere accoppiata alle montature ed anelli più diffusi in commercio.

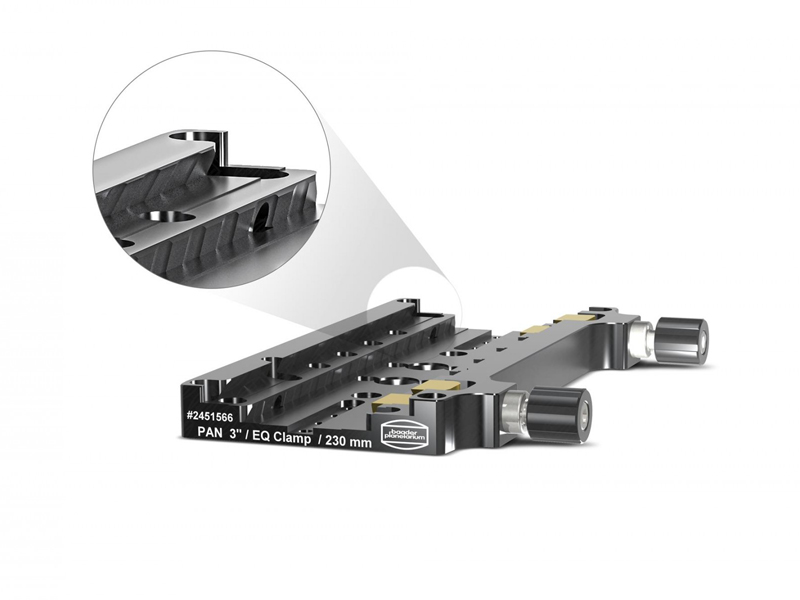

Baader PAN 3″/EQ dual clamp (Losmandy and Vixen style) / 230 mm with two pressure clamps.
- Flangia per accogliere barre a coda di rondine tutti 3 “(Losmandy) ed EQ- (Vixen / Celestron / Skywatcher) – la lunghezza minima che deve avere la coda rondine affinché sia agganciata da entrambi i blocchi è 19mm

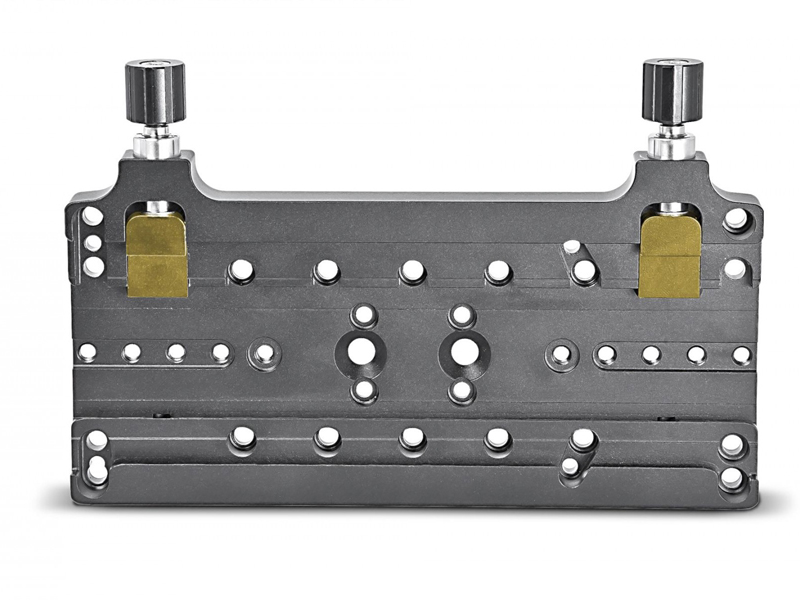

- È dotato di tutti i fori di fissaggio per essere inserite sulla maggior parte delle montature note nel mercato astronomico.
- Lunghezza: 230mm, max. Larghezza: 153mm Peso: 1150g
- Forma ottimizzata per il maggior numero di barre – quindi una presa perfetta
- Clamps all 3″ (Losmandy) and EQ- (Vixen/Celestron/Skywatcher) dovetails – minimum dovetail length 190mm
- It is equipped with all the known fastening holes to be screwed on all mounts and all clamps of the known brand manufacturers.
- Length: 230mm, Max. Width: 153mm Weight: 1150g
- Optimised shape for as many contact points of the dovetail rail – thus a perfect grip
